¶ ATC Positions
| Voice callsign | Callsign | Frequency |
|---|---|---|
| Atlantico Center | SBAO_CTR | 134.500 |
| Atlantico Center | SBAO_S_CTR | 133.150 |
| Atlantico Center | SBAO_N_CTR | 133.575 |
| Atlantico Center | SBAO_AD_CTR | 133.575 |
¶ Airspace
| Lateral limit | Area | Class | Vertical Limit | Service |
|---|---|---|---|---|
| All oceanic airspace of FIR SBAO | Atlantico FIR | G | GND - FL245 | Non-radar |
| All oceanic airspace of FIR SBAO | Atlantico FIR | A | FL 245 - UNL | Non-radar |

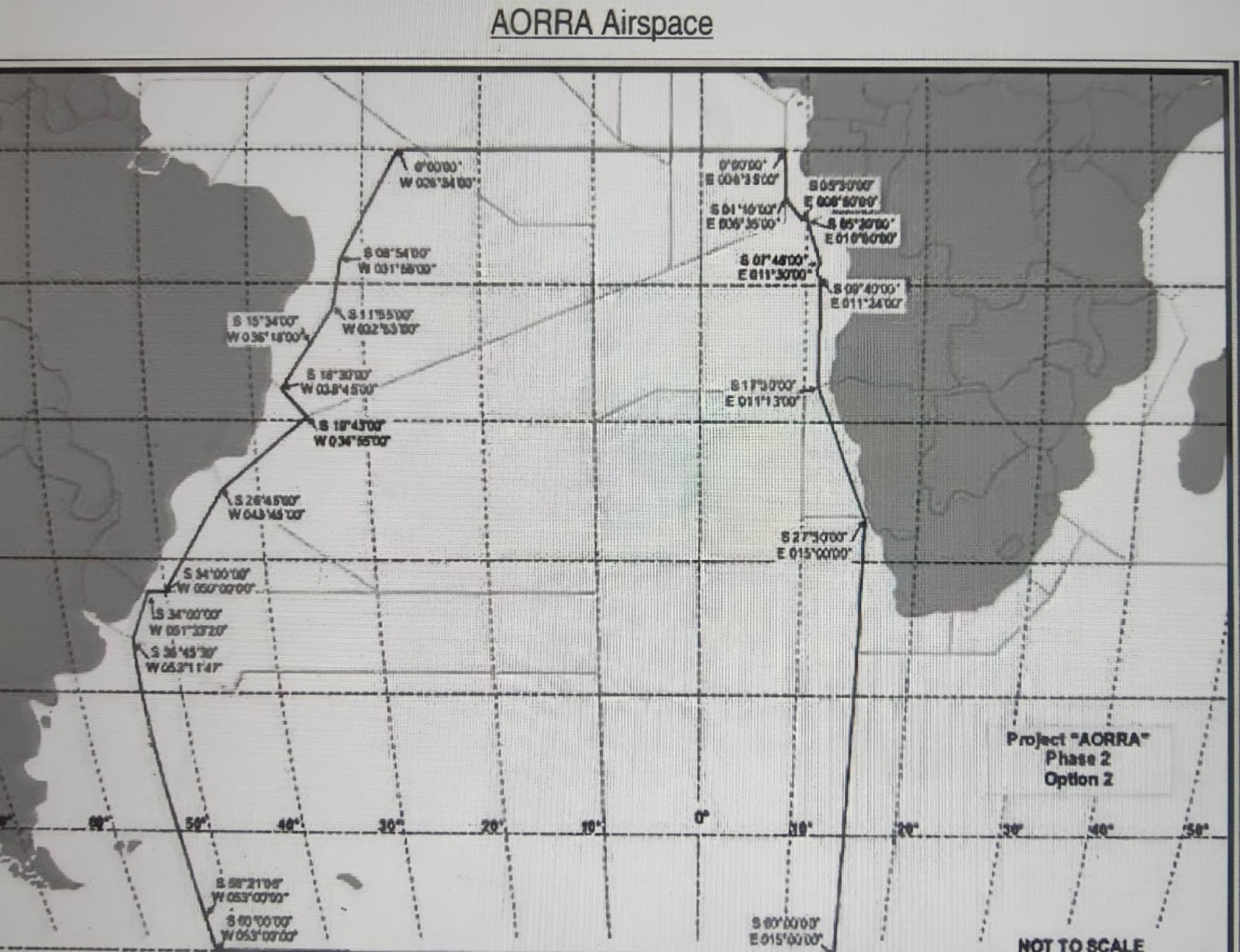

¶ Atlantic Ocean Random Routing RNAV Area (AORRA)
The AORRA is the volume of airspace between FL290-FL410 inclusive within the Atlantico, Accra, Comodoro Rivadavia, Dakar, Dakar Oceanic, Ezeiza, Johannesburg Oceanic, Luanda and Montevideo FIRs.
Flights operating within the AORRA shall enter and exit via chartered gates
¶ South Atlantic Corridor
| Airspace designated | RPN 10 and RVSM |
|---|---|
| Lateral Separation | 50mn (minimum) |
| Longitudinal separation | 10 minutes |
¶ Standard procedures
- The preferred method for ATC COMM is through CPDLC.
- Since HF is not simulated in our software, the assigned VHF frequency will be used upon ATC request or in case of any failure.
- If CPDLC is not possible, text messages will be accepted.
- SELCAL check is not necessary in SBAO, however it’s also not simulated.
- ATC may instruct aircraft to MONITOR the VHF frequency but the pilot is not required to call.
- English must be used, local language is not allowed.
- Pilots should advise ATC immediately if unable to comply with any clearance or instruction.
- SBAO does not require Oceanic Clearance.
- Handoff will be made by another ATC asking the pilot to LOGON CPDLC ID SBAO or text mode only.
- On first contact pilots shall send a position report according to the ATIS.
- Mach number Technique may be applied.
- SLOP (Strategic Lateral Offset Procedures) is permitted.
¶ Coordination
Coordination with: the ACC/sectors of AZ, CW, RE must start at least 15 minutes before the lateral limit.
Aircraft must be transferred in the transfer zone according to the table below:
| ACC | Area |
|---|---|
| ACC Sal | 5 min from FIR limit |
| ACC Dakar Oceanic | 5 min from FIR limit |
| ACC Cayenne | 5 min from FIR limit |
| ACC Luanda | 5 min from FIR limit |
| ACC Johanneburg | 5 min from FIR limit |
| Adjacent sector of SBAO | 10 nm or 3 min from sector boundary, whichever is less |
| ACC Recife | 20 nm or 3 min of the FIR limit, whichever is less |
| ACC Curitiba | 20 nm or 3 min of the FIR limit, whichever is less |
| ACC Amazonico | 20 nm or 3 min of the FIR limit, whichever is less |
¶ Separation
a) All aircraft in oceanic airspace will have a mandatory minimum separation of 1000 feet in RVSM airspace and 50nm or 10 min.
b) Separation will be provided through position and estimated reports.
¶ Mandatory position reports
Position reporting shall be required at:
- Entry/Exit gate
- 10W, 15W, 20W, 30W, 40W, 45W and 50W
- At any other position required by ATC
¶ CPDLC
| Sector | CPDLC ID |
|---|---|
| SBAO_CTR | SBAO |
| SBAO_S_CTR | SBAS |
| SBAO_N_CTR | BAON |
| SBAO_AD_CTR | SBAD |
It is recommended to read the MCA 100-23, available at: https://publicacoes.decea.mil.br/publicacao/mca-100-23 and the Datalink manual available on the IVAO Brazil Wiki: https://wiki.br.ivao.aero/pt-br/atcops/datalink_aurora
¶ ATIS
ATC POSITION: Atlantico Center
ATIS ACTIVE: Marked
METAR STATION: Uninformed
DEPARTURE: Uninformed
ARRIVAL: Uninformed
TRANSITION LEVEL: Uninformed
TRANSITION ALTITUDE: Uninformed
REMARKS: Fill out as per Note below
¶ Mandatory RMK
It is mandatory to use the RMK:
DATALINK in use | Oceanic Clearance NOT NEEDED | Aircraft joining the ACC need to inform the callsign and point of entrance | Position reports mandatory and to include +ETA of next waypoint, next significant point and wind Information |
